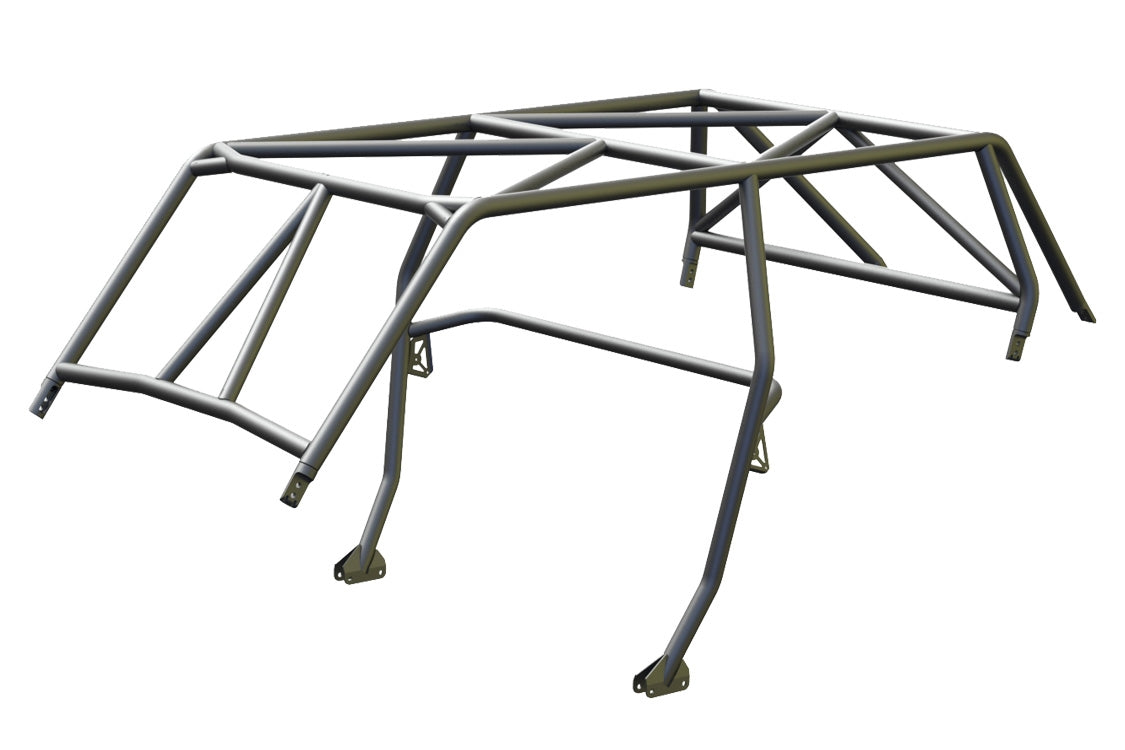

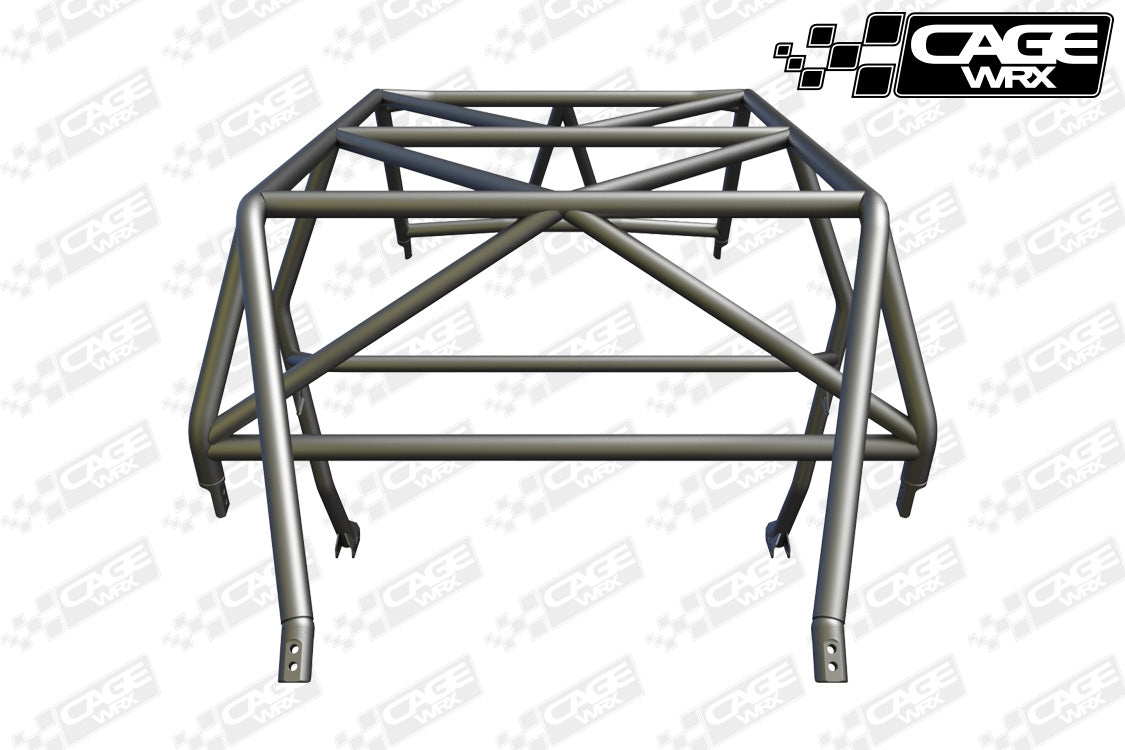

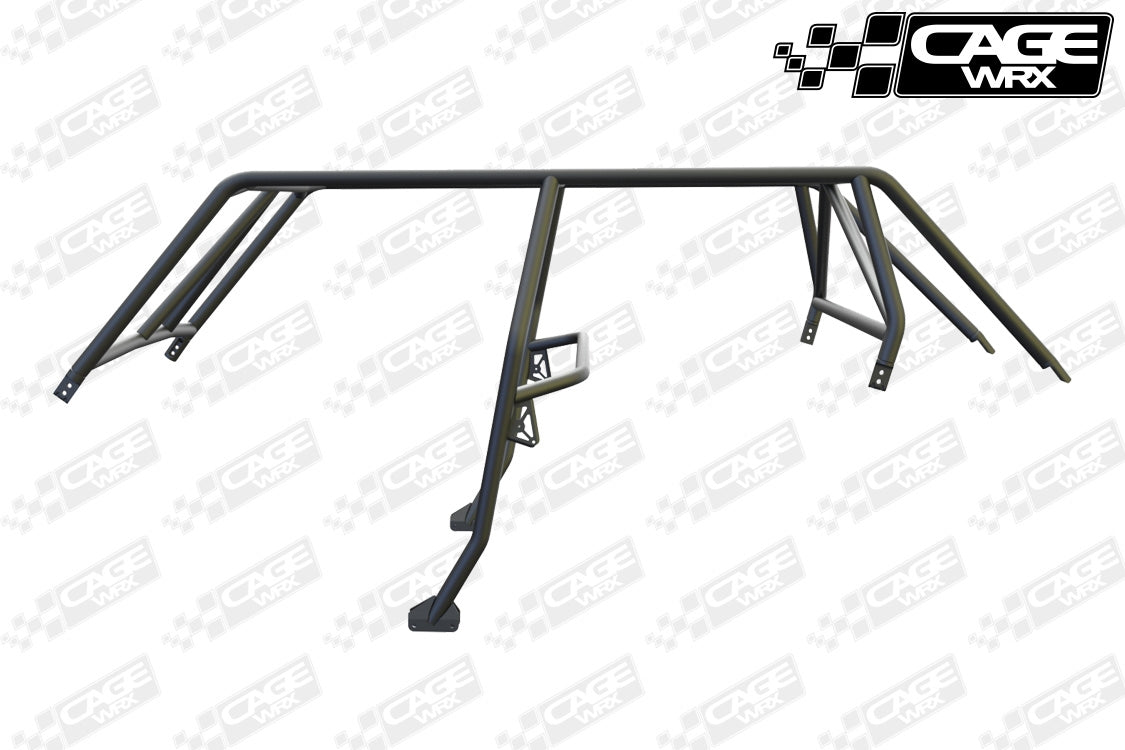

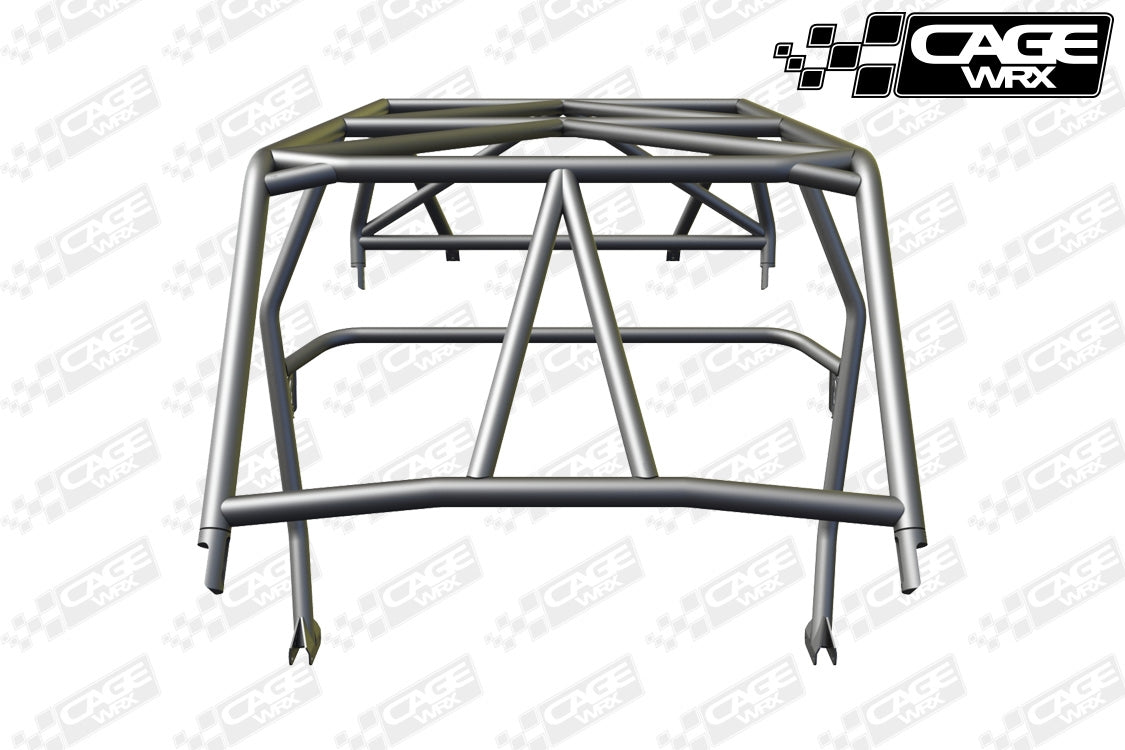

High quality DOM steel used throughout. Main tubes are 1.75" diameter .095" thick and cross tubes are 1.5" diameter and .095" thick. Our Baja Spec use all stock mounting locations. Trophy Truck inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture. This kit meets SCORE and Best in the Desert roll cage requirement in terms of material, tube size, and design. Please check with the rule books for complete safety requirements.
What's in the box?
- 18 Laser Notched Tubes with tab and slot design for easy positioning of tubes
- 6 Billet Tube Ends (chassis clamps)
- 4 Chassis Mount Plates
- 2 Rear Door Latch Mount Plates
- 2 Whip or light tab mounts
*Roof sold separately
In order to retain stock doors, front door hinges must be removed from stock cage and re-welded to our Baja Spec roll cage. Doors will retain exact stock location and fit.
Click HERE to download and install Edrawings Viewer for Solidworks
Download, Unzip, and Open the CW 4SXP1K-FT.EASM using the Edrawings Viewer
